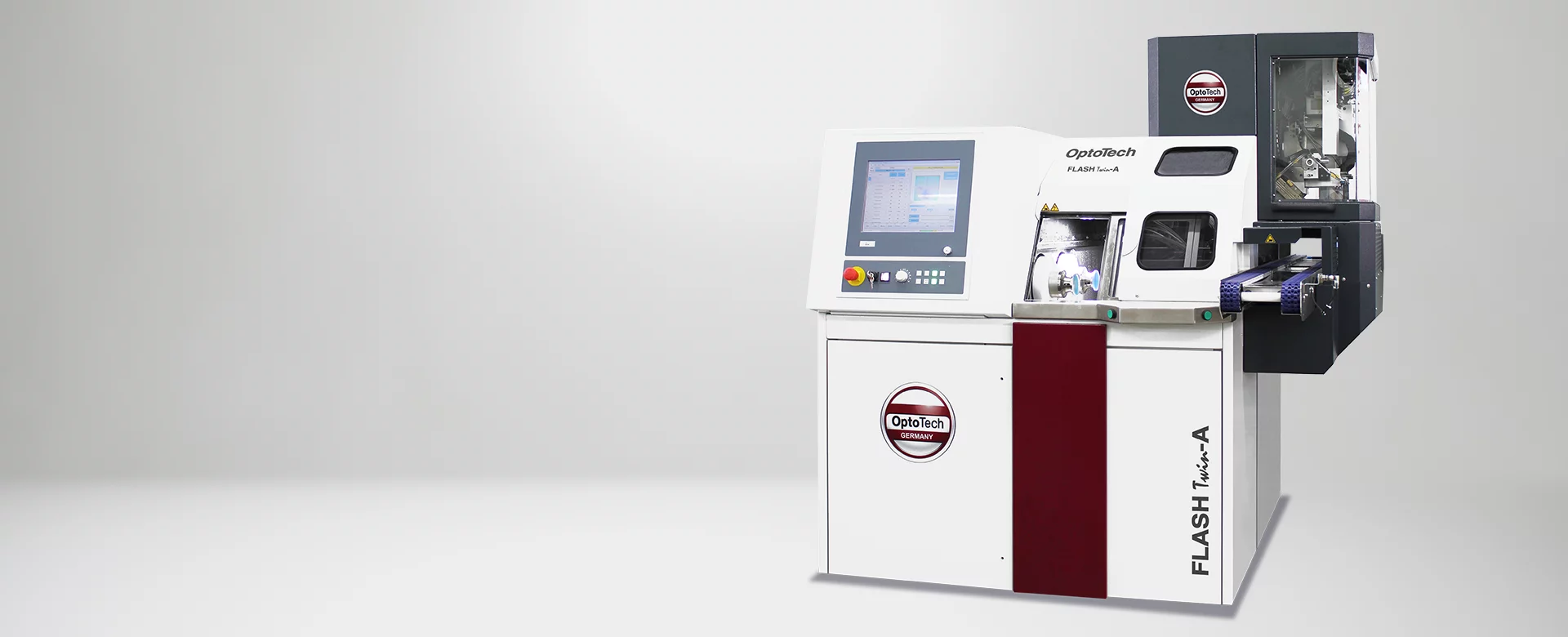

The new digital surfacing-turning machine FLASH Twin-A is an enhancement of our tried and tested FLASH series. Due to the usage of 2 Fast Tools, the FLASH Twin-A is able to simultaneously process 2 freeform lenses. Considerably increased speed of the tool spindles, combined with a high-class precision ball bearing, leads to significant improvements in quality and quantity. It is the ideal complement to our ESM Twin-A.

Spectacle optics
View now


  • Due to the usage of 2 Fasttools, the FLASH Twin-A is able to simultaneously process 2 freeform lenses
  • Considerably increased speed of the  tool spindles, combined with a high precision ball bearing for the workpiece spindles, leads to significant improvements in quality and quantity
  • A high dynamic drive concept combined with an ultrafast computer controller enable highest precision in freeform surfacing within shortest processing times
  • For processing backsideprogressive, atoric, individual, front progressive and standard toric surfaces

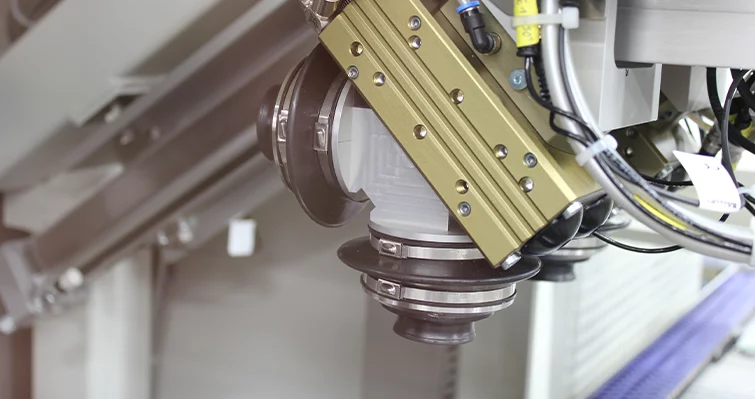

  • Optimized automatic loading system
  • Lowest vibration due to OptoTech async mode
  • Machine base made of rigid mineral cast
  • FastTool highspeed linear drive
  • Ideal combination with ESM Twin-A

Process characteristics

  • Cut-to-polish (spherical, torical or a-torical): approx. 120 surfaces/h
  • Cut-to-polish (freeform): approx. 120 surfaces/h


  • Coolant tank
  • Barcode hand scanner
  • Remote diagnosis
  • LAN connection

Digital Surfacing-Turning Machine

Lens Diameter51 mm - 85 mm
Working Range Radius cvTurning -15 dpt.
Working Range Radius cxTurning +25 dpt.
ControlBeckhoff high resolution real-time continuous path control 15“ touch screen with interactive user interface
Lens MaterialAll organic Materials
Number of Fasttools2
Productivity60 lenses/h - 120 lenses/h; depending on process
ToolsTurning Tools 1 and 2: PCD R5.5 mm and Natural diamond tool R2.0 mm
Workpiece SpindlesDrive: Direct driven with high precision ball bearing concept; Interface: Collet Chuck ø43 mm DIN 58766
Air Pressure Requirement6 bar
Power Requirement (others on request)400 V / 50 Hz
DimensionsWidth: 1785 mm, Height: 1940 mm, Depth: 2380 mm
Weight (approx.)2200 Kg
DisclaimerAll data are subject to change without notice. Please verify details with OptoTech.
