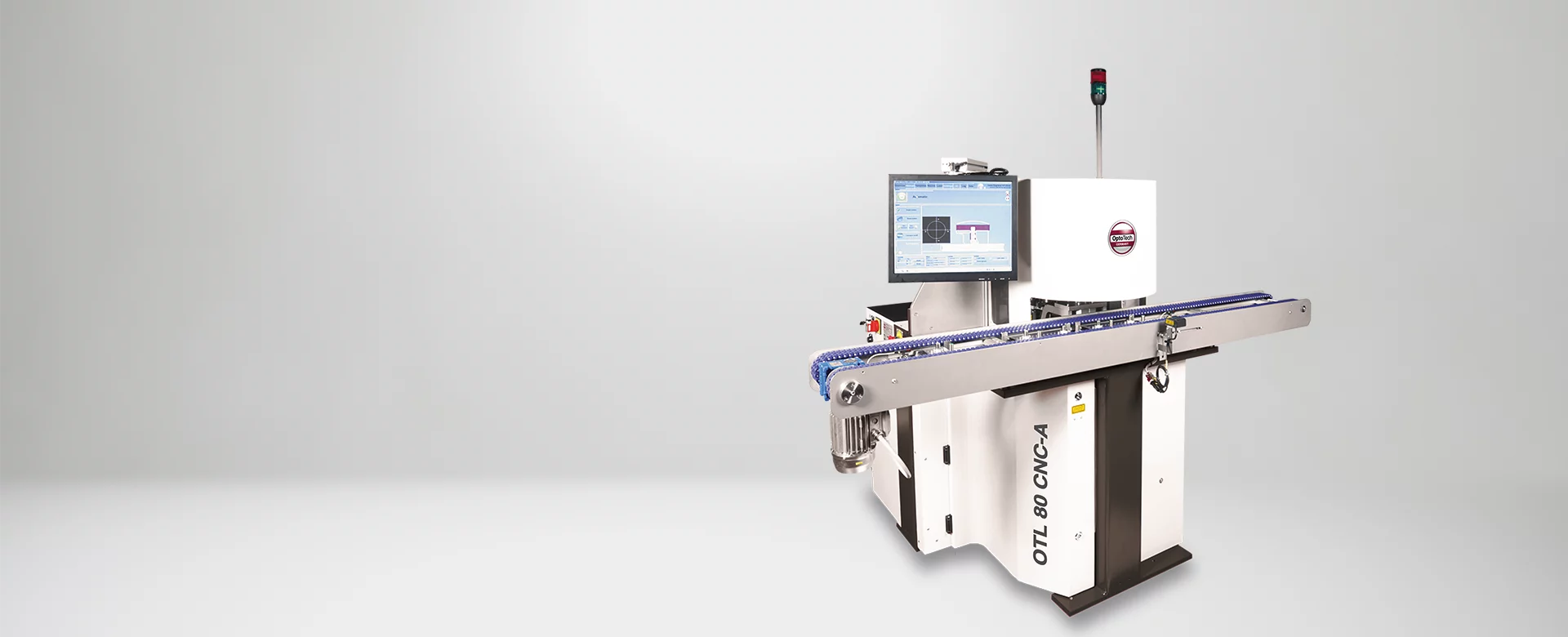

OTL 80 CNC-A

The Autolaser OTL 80 CNC-A is the ideal and flexible laser for small, midsize and big laboratories with highest throughput rates at highest precision.

Spectacle optics
Engraving
Automation
Plastic
View now

Highlights

  • Ideal and flexible laser for small, midsize and cost-conscious big laboratories with highest throughput-rates at highest precision
  • Almost maintenance-free (CO2 exchange every 30000 operating hours)

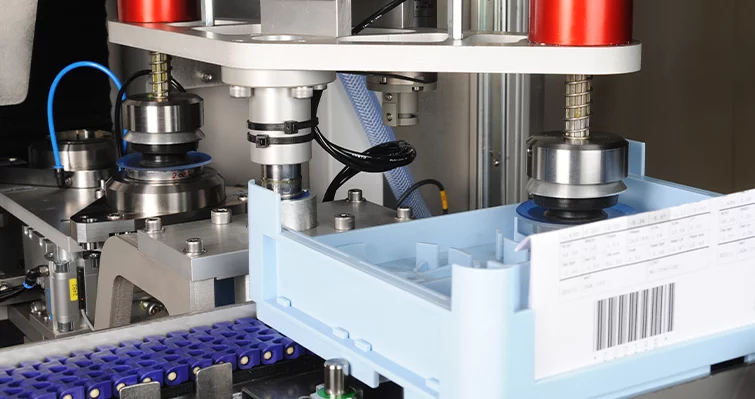

  • Automatic conveying

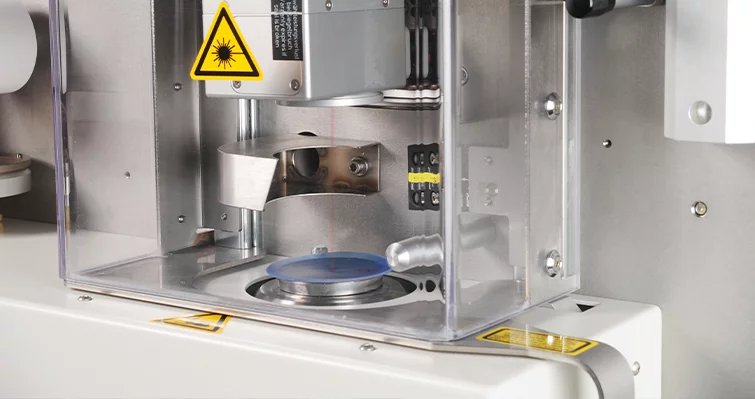

  • Highest precision (Scanhead directly connected with laser)
  • Laser and scanhead "Made in Germany"
  • Compact design

System advantage

  • Fastest CO2 laser in the market for highest throughput rates (over 300 lenses per hour)
  • Easy operation via touchscreen
OTL 80 CNC-A
Application

Automatic CO2 Laser Marker

Block Diameter35 mm - 75 mm
Lens Diameter36 mm - 85 mm
Lens Height4 mm - 30 mm

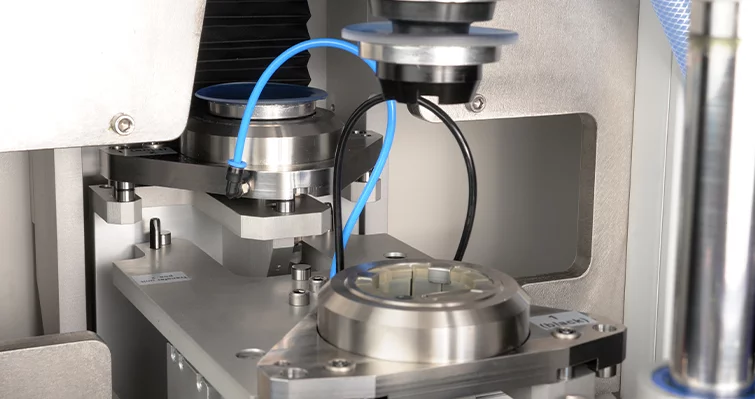

Blocking Chucks43 mm DIN 58766
ControlPC Based CNC Controller
Engraving MethodCO2 Laser, 20W
Focal Length100 mm
Lens MaterialAll organic Materials
Marking Field70x70 mm
Productivity350 lenses/h
Wave Length10600 nm
DimensionsWidth: 1800 mm, Height: 1500 mm, Depth: 1000 mm
Weight (approx.)400 Kg
DisclaimerAll data are subject to change without notice. Please verify details with OptoTech.
