Easy Twin CNC

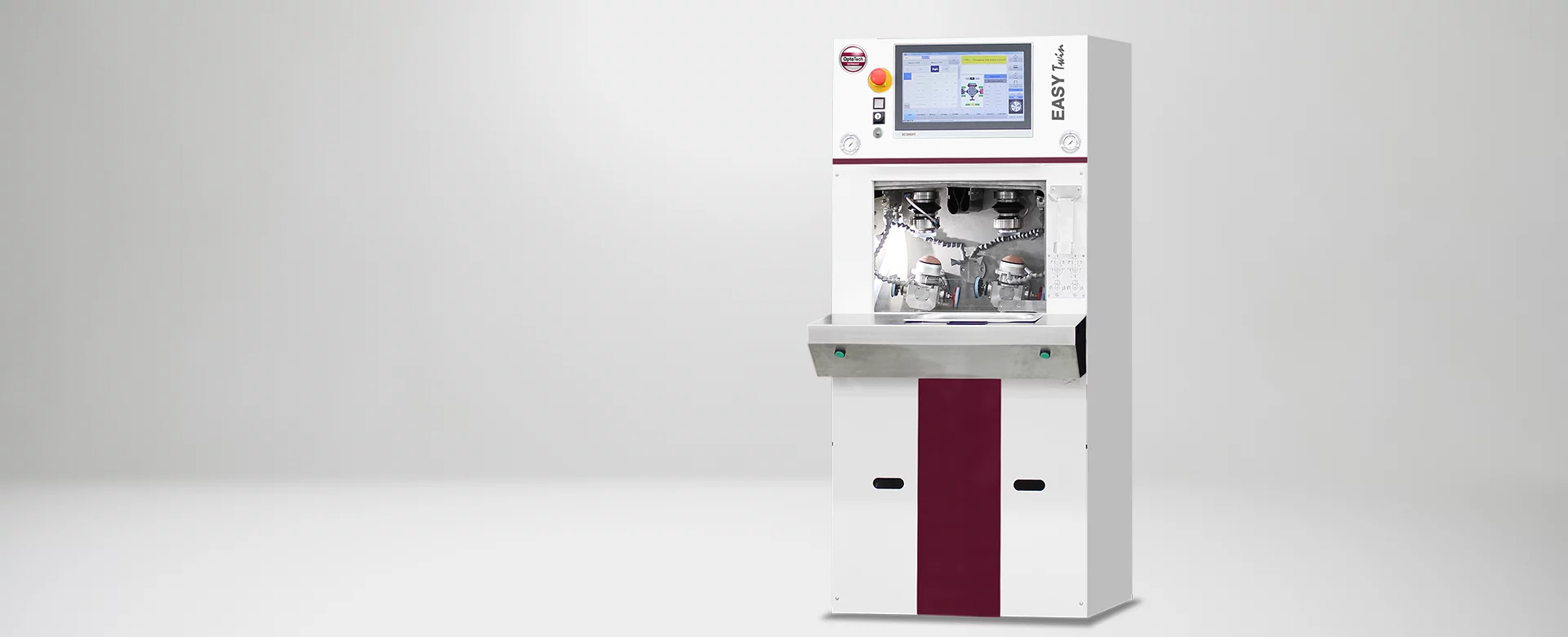

The OptoTech Easy Twin CNC is a low cost two-spindle polishing machine for fine polishing of ophthalmic lenses with progressive, custom made, spherical, a-toric, toric, convex and concave surface geometries.

Spectacle optics

Polishing

Manual

Plastic

View now

PDF Download

Contact request

Highlights

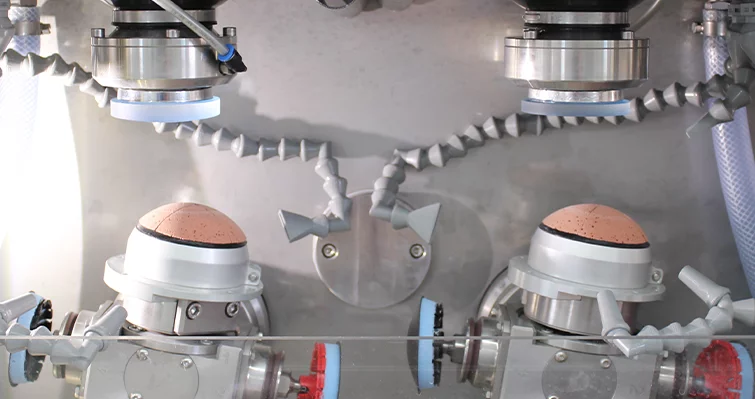

Two lenses are processed simultaneously (different surface prescriptions with specifically assigned kinematics)
The lenses can be polished both prismatically and oval

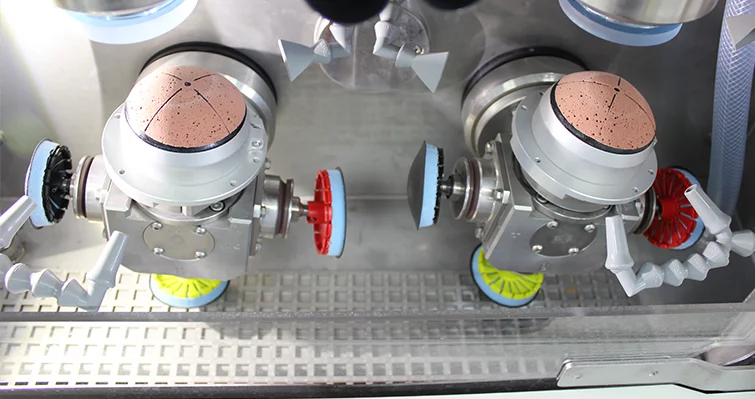

Automatic tool change via 2 tool revolvers, each equipped with 4 polishing tools (OptoTech flex tools or flatback tools)
Fully fledged CNC controller for freeform lens production (6 CNC axes)
Easy handling via touchscreen
Mechanical clamping system for blocking pieces DIN 58766
Integrated cleaning tank on the forefront of the machine. Barcode Handscanner

System advantage

Low cost two-spindle polishing machine for fine-polishing of ophthalmic lenses with progressive, custom made, spherical, a-toric, toric, convex and concave surface geometries

Options

Polishing Tank, Polishing Tools, Chiller

Technical Data

	Easy Twin CNC
Application	CNC Polishing Machine
Lens Diameter	50 mm - 90 mm
Working Range Base Curve	10 dpt. (Index 1.500)
Working Range Cylinder	4 dpt. (max. 10 dpt.)
Control	CNC Controller
Lens Material	All organic Materials
Productivity	40 lenses/h; depending on process
Tools	OptoTech Flex Tools, Flatback Tools
Air Pressure Requirement	5 bar
Power Requirement (others on request)	400 V / 50 Hz
Dimensions	Width: 735 mm, Height: 1686 mm, Depth: 1095 mm
Weight (approx.)	410 Kg
Disclaimer	All data are subject to change without notice. Please verify details with OptoTech.
