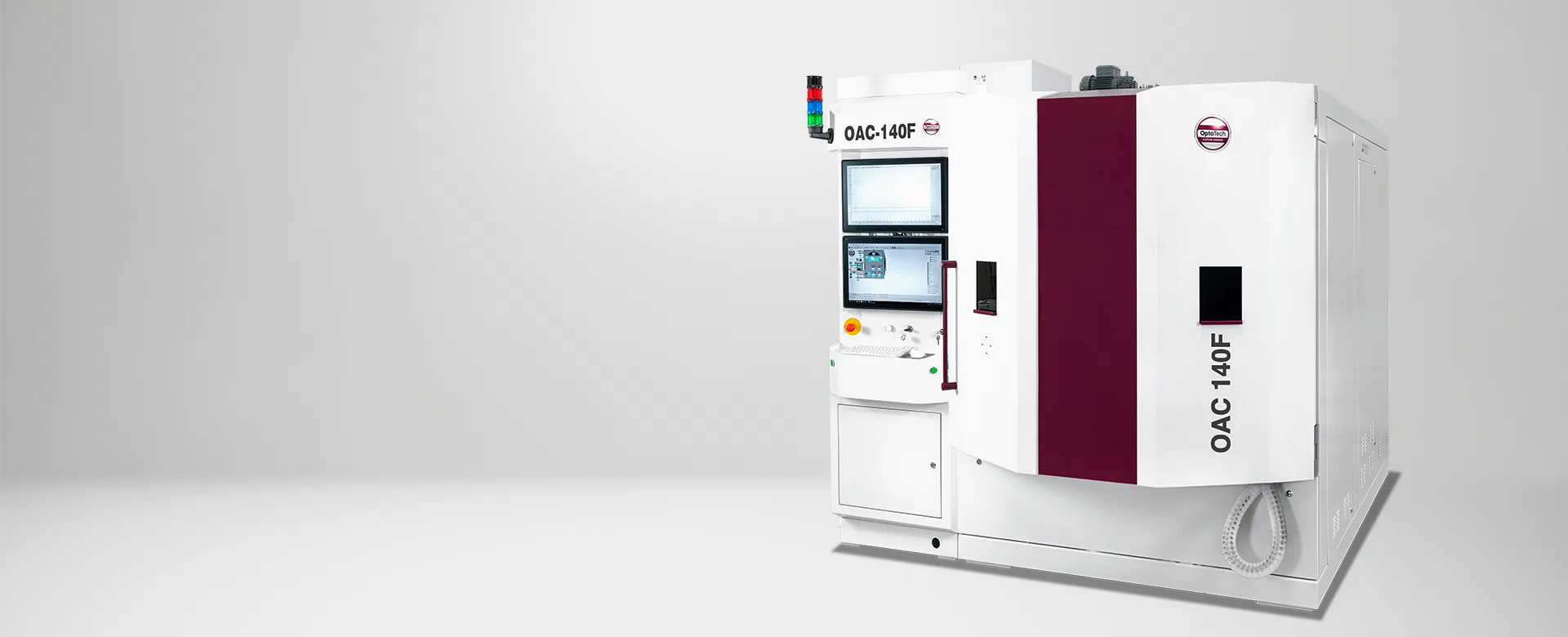

OAC-140F
Large Substrates - High Volume
The OptoTech OAC-140F evaporation coater is used for the application of high quality thin films like antireflective (AR) coatings and other kinds of optical coatings and interference filters on optical components on a small scale. The OAC coating system is characterized by the product quality for which OptoTech is known, ease of use, and exceptional reliability in the daily production operation.
Coating
AR-Coating
Contact request
Highlights

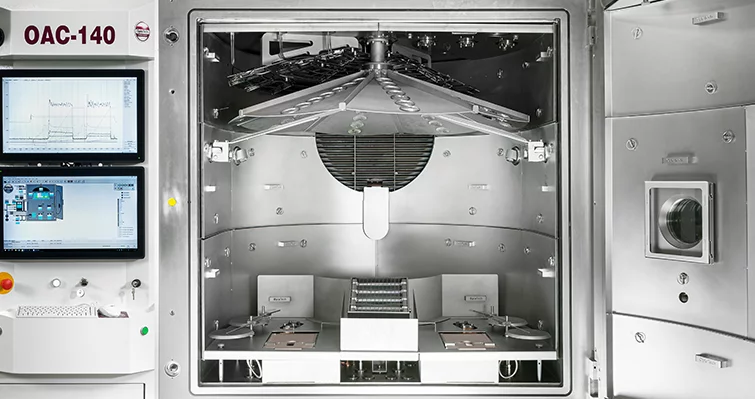

- High quality stainless steel vacuum chamber with electro polished surface

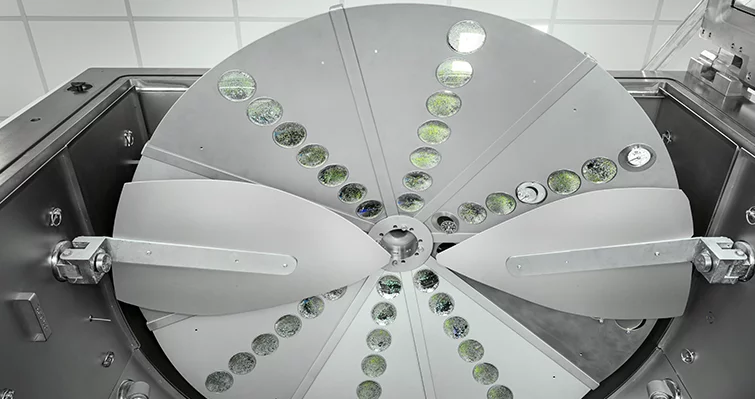

- Customized domes, sectors, planet substrate holders available
- Pumping system with cryo pump and dry pump
- Process control unit with operator interface

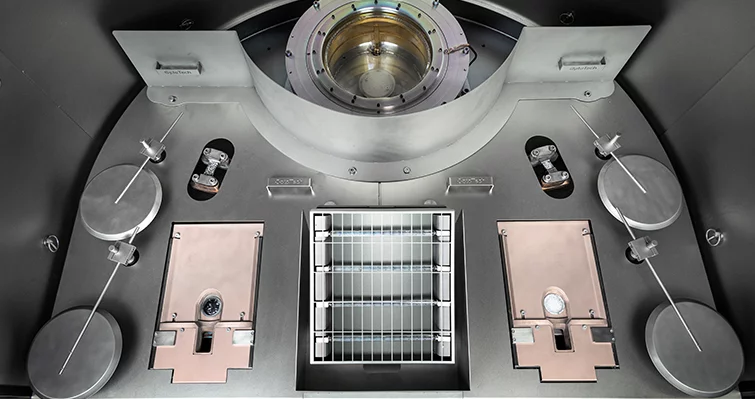

- Multi electron-beam evaporation system
- Multi thermal evaporation source
- Plasma source DN400 or gridless Mark2 Ion source with filament or hollow catode
- Heating system
- Thin film deposition control with multi quartz crystal method
System advantage
- Perfect for mid-size and larger production volumes
- Wide range of competitive coating processes
- Reliable in the daily production
- Highest throughput numbers
- Very short cycle times
Options
- Turbo pump or diffusion pump with Meissner trap and Polycold
- Simultane evaporation
- Broadband monitor: Direct measurement
- Wide range of coating consumables and coating materials available
