SM 40 CNC-TC

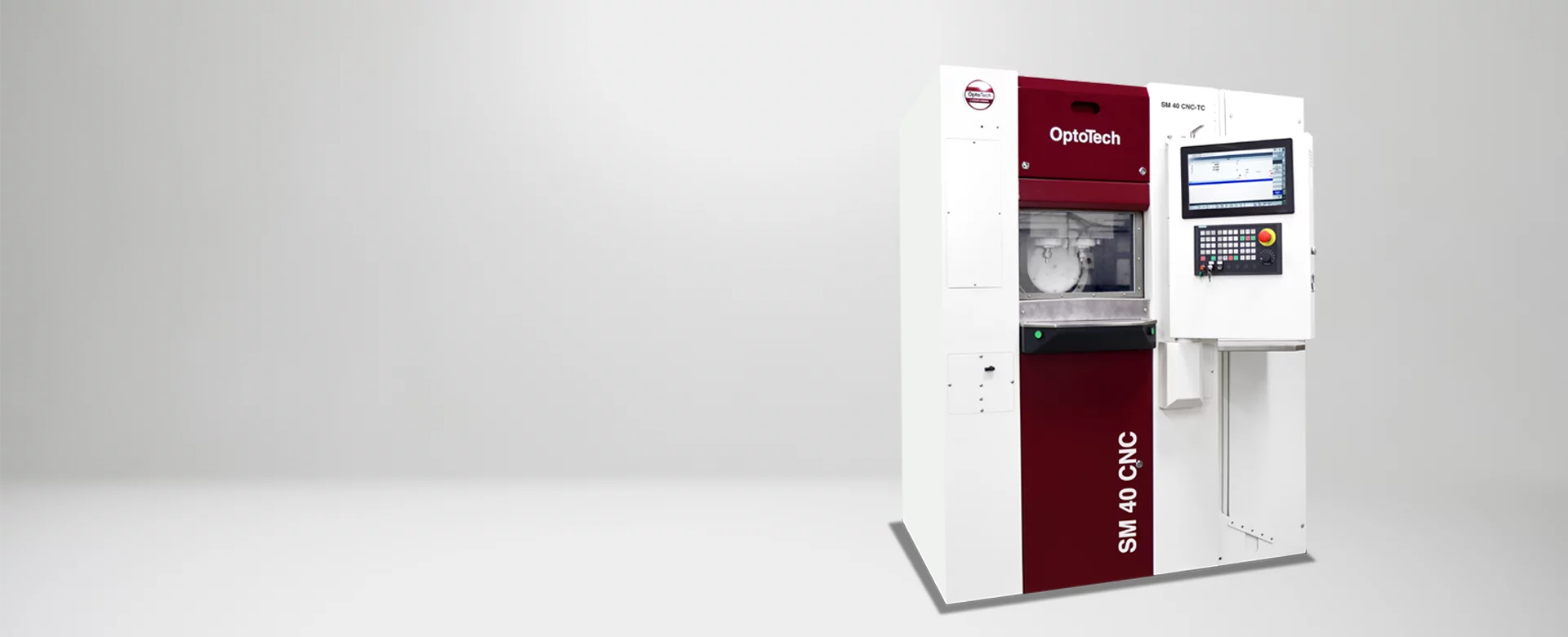

The OptoTech precision grinding machine SM 40 CNC-TC is perfectly suited for flexible and universal production of spherical micro optical components. The machine is the perfect complement to our SPK 40 CNC polishing machine, delivering a balanced cycle time for grinding and polishing.
Precision optics
CNC
Grinding
Contact request
Highlights

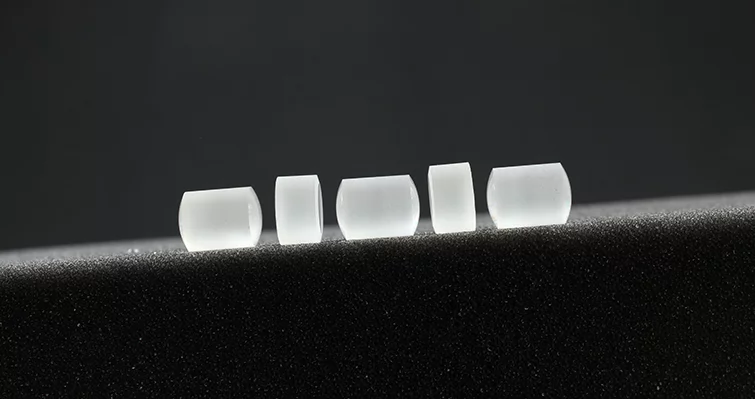

- Grinding machine for pre-grinding and fine grinding of spherical lenses with cup grinding tools, as well as edge grinding and chamfering with form wheels

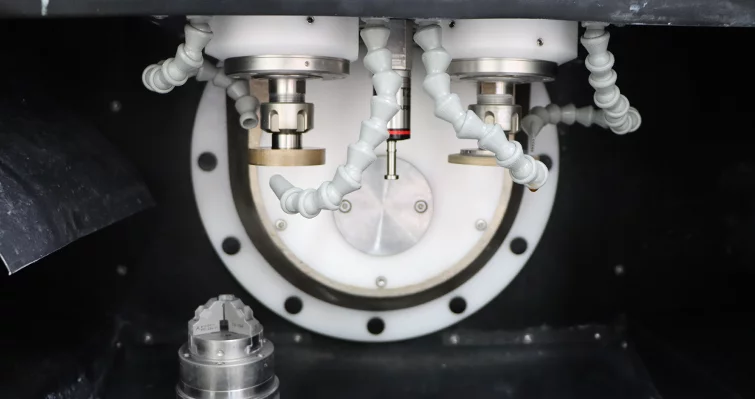

- 3 Spindles (Workpiece spindle, pre-grinding spindle and fine grinding spindle)
- All tool spindles using direct drives
- 3 CNC-Axes (X, Z, B)
- Machining parameters are entered via a 3-axis Siemens Sinumerik One CNC controller with touchscreen display
- OptoTech user interface
Process characteristics
Technologies:
- Grinding of spheres with standard cup wheels
- Pre-, fine grinding and edging possible
- Grinding of a protection chamfer (radii chamfer) with the cup wheels
Options
Machine Options:
- Automation via RPL 80
- Processing of complex edge geometries using OptoEdge
- Remote diagnostics
- Upper measuring pin for center thickness and diameter
Additional Accessories (available as an option)
- Coolant tanks (with or without centrifuge)
- Chiller with coolant tank
- Filter exhausting device with coolant recirculation
- Vacuum device
