OWI 150 XT invers

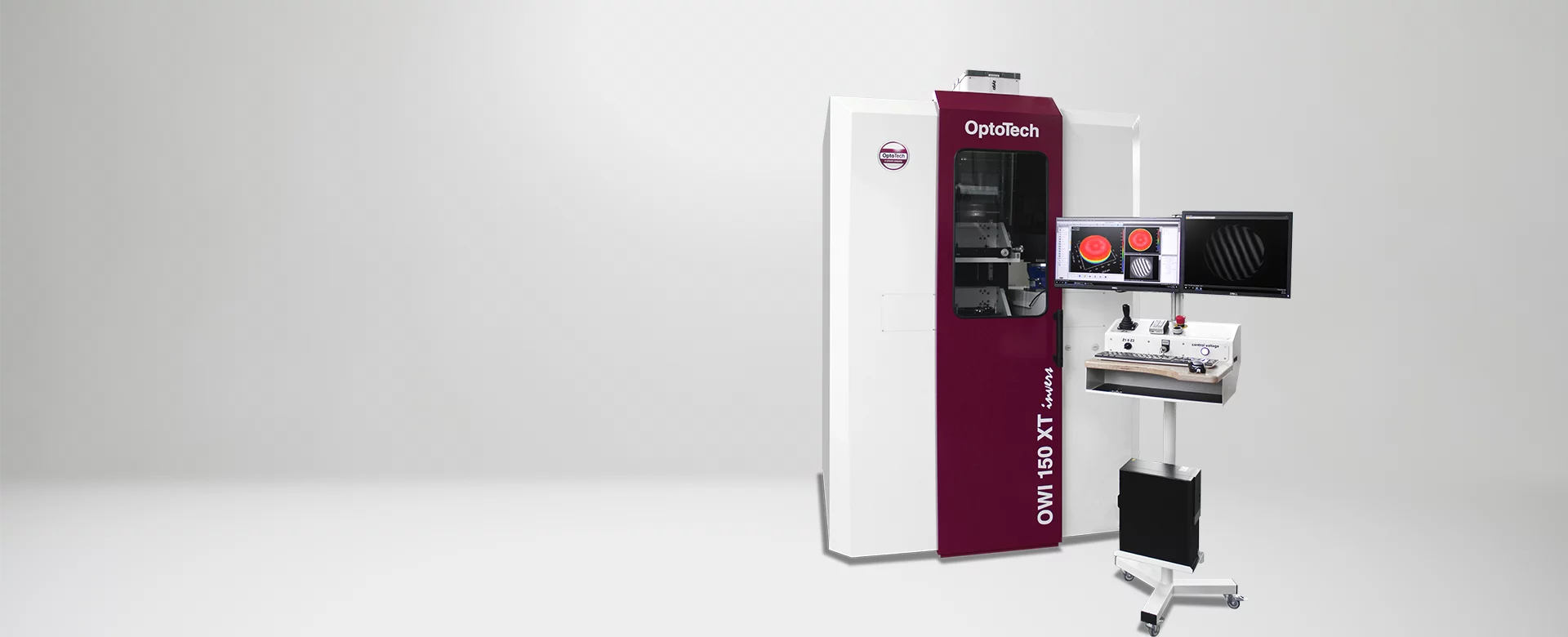

High precision Fizeau workshop interferometer OWI 150 XT invers for testing of spherical and aspherical surfaces. High precision kinematics and a working range up to Ø 150 mm make this measuring machine an indispensable tool for the production of high-end optics.
Metrology
Interferometry
Form Measurement
Radius Measurement
Contact request
Highlights
- High precision Fizeau workshop interferometer for testing of spherical and aspherical surfaces.
- High precision kinematics and a working range up to Ø 150 mm make this measuring machine an indispensable tool for the production of high-end optics
- Measuring stand made of shock-absorbing granite for highest accuracy and rigidity
- Mounted on passive air dampening elements on stable steel base frame
- Radii slide with free from play pre-loaded antifriction bearing, driven by servo motor, variable speed via joystick, travel 1050 mm

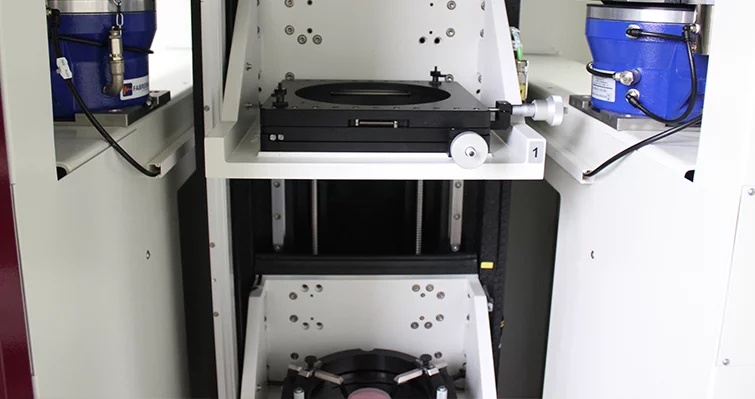

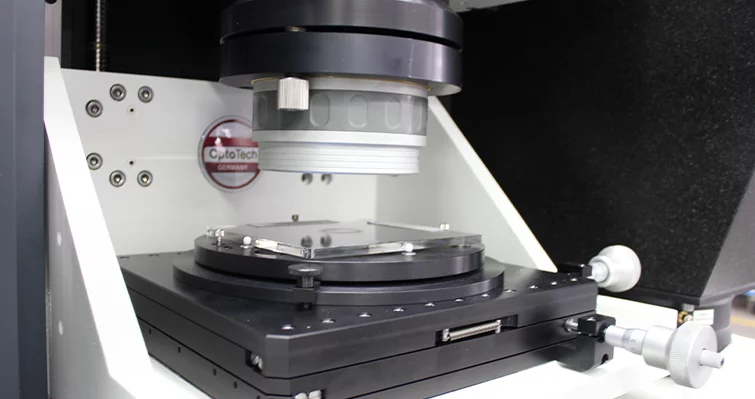

- 3-axis table (5-axis table available on option)
- Heidenhain glass scale with 5 μm measuring accuracy for the total travel for absolute measuring precision of radii, scale mounted close to the optical axis (Abbe’s principle)
- Innovative, service friendly mounting of current types of interferometers incl. analysis software
- Different powerful interferometer module options (LT Ultra Modules 4" / 6" or DHS Modules) and compatible software solutions for evaluating your measurement results available
System advantage
- Optimized for use at the production level
- Robust base frame and dampening elements for minimum vibration during operation
- Highest accuracy and rigidity
Options
- Two table version (asphere- and system measuring options)
- Laser measuring system optional for 1-table version
- Plano measuring by additional tip and tilt table
- Various ring holders
- UP radius measurement via Renishaw-Laser with Zygo MX
