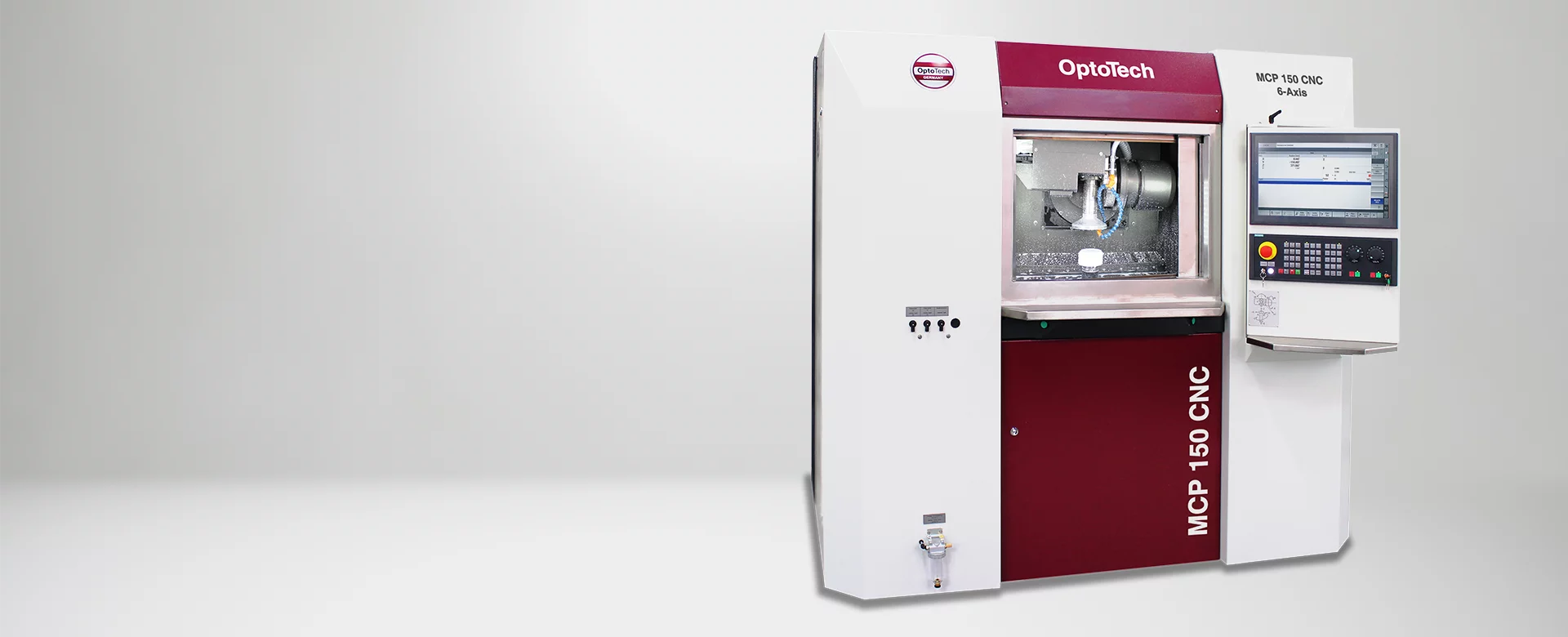

MCP 150 CNC 6-Axis

• 6-Axis polishing and correction polishing machine for pre-polishing and highly accurate correction polishing of pre-polished workpieces made of glass, ceramics etc.
• The large range of usable tools like Advanced Wheel Polishing (A-WPT), Active Fluid Jet Polishing (A-FJP), tools for SynchroSpeed polishing and different pitch tools make the MCP-Series a universal machine for optical processing

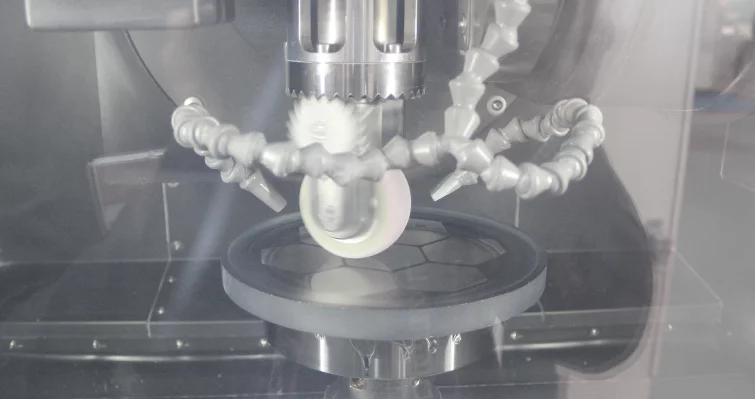

• Partial pitch polishing, A-WPT and A-FJP polishing in raster and spiral mode
• Full online connection between the entire working cell (MCG Series with MCP Series and Metrology). Even freeform surfaces can be fine corrected by correction dataset
• Direct interface to tactile and optical surface measuring systems like Taylor-Hobson Form Talysurf, Mahr MarSurf, Mitutoyo or OptoTech Interferometers
• Machine base made of cast iron for highest rigidity

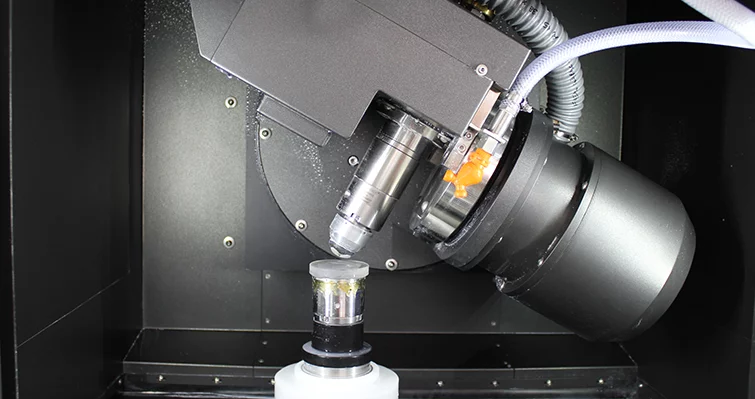

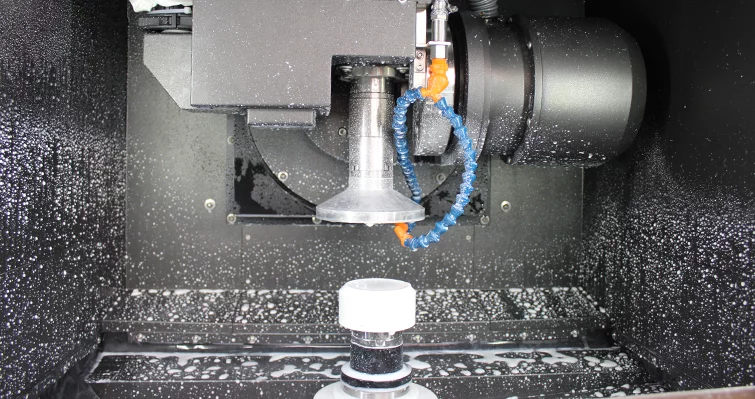

• 1 vertical workpiece spindle, movable in X-Z-direction and1 tool spindle, mounted on B-Y-Axis
• Workpiece spindle combined with C-Axis
• 6 CNC Axes, AC servo motors for X- and Z-Axis
• Quick and precise tool change due to Hydro-Expansion Chuck Technology (Ø 25 x 40mm DIN)

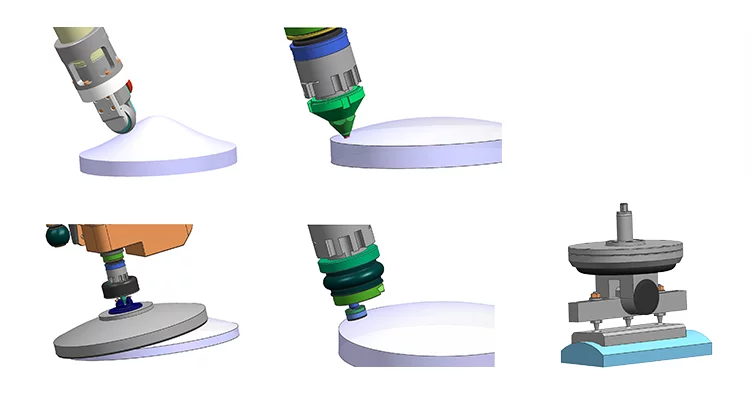

Processing Technologies:

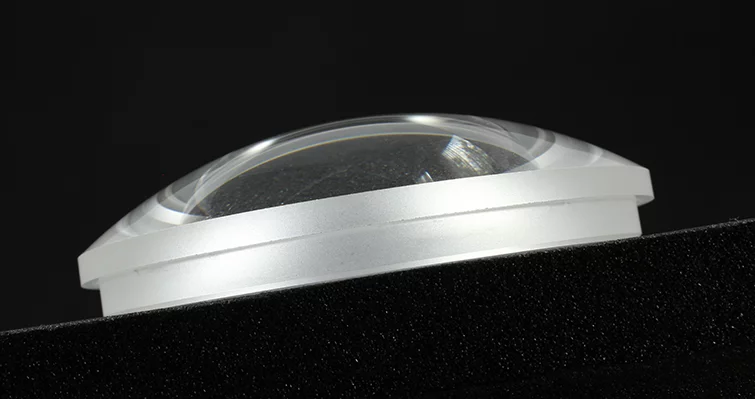

1. Spherical Polishing in Synchrospeed mode
2. A-WPT
3. A-FJP Corrective Polishing
4. Classic Pitch Polishing
5. Partial Pitch Polishing
6. Cylinder Polishing
