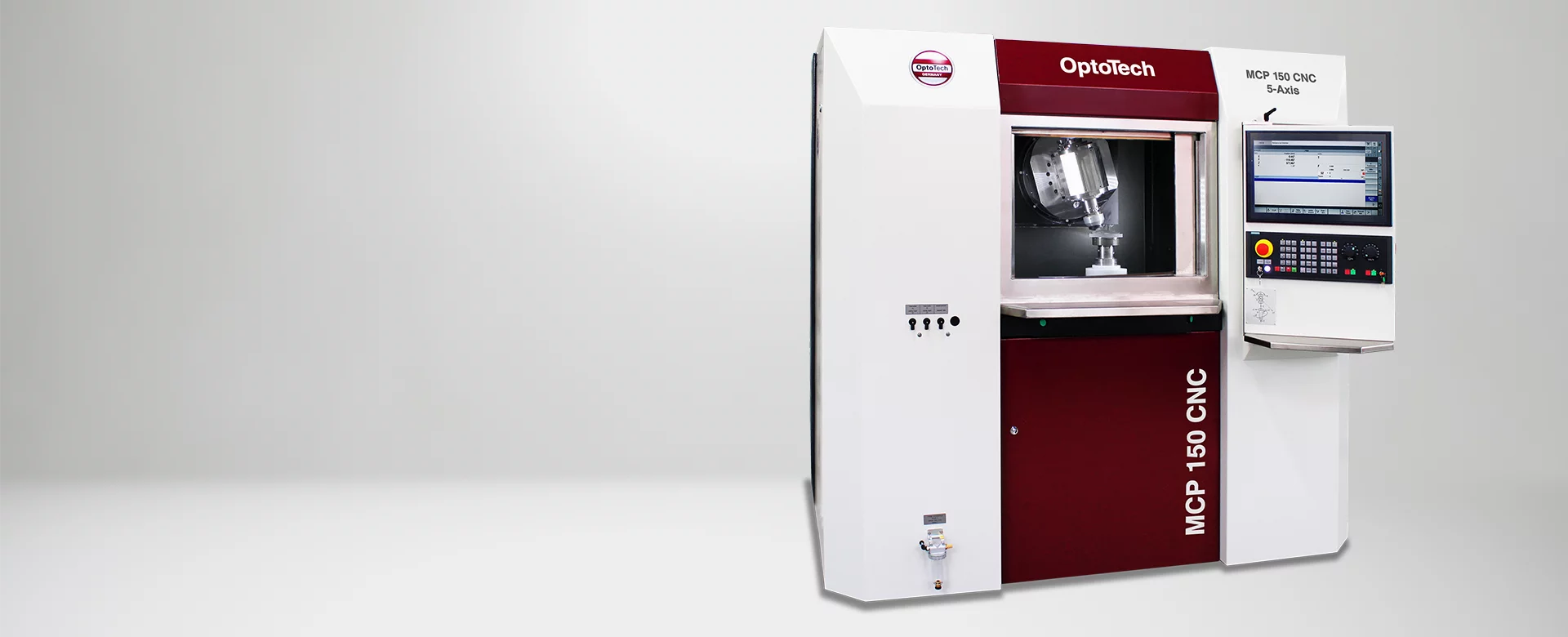

MCP 150 CNC 5-Axis
The new compact optical polishing centre MCP 150 CNC 5-Axis is one of the latest processing centres made by OptoTech. Whatever you want to produce, whether spheres or aspheres, the MCP 150 is the perfect machine for these tasks. Multiple CNC axes and an innovative tool concept grant the requested flexibility.
Precision optics
CNC
Fine Correction
Polishing
Contact request
Highlights
- 5-Axis polishing and correction polishing machine for pre-polishing and highly accurate correction polishing of pre-polished workpieces made of glass, ceramics etc.
- The large range of usable tools like Advanced Wheel Polishing (A-WPT), Active Fluid Jet Polishing (A-FJP) and different pitch tools make the MCP-Series a universal machine for optical processing
- A-WPT and A-FJP polishing in spiral mode
- MultiTool Concept for processing of spheres and aspheres
- Full online connection between the entire working cell (MCG Series with MCP Series and Metrology). Even freeform surfaces can be fine corrected by correction dataset
- Direct interface to tactile and optical surface measuring systems like Taylor-Hobson Form Talysurf, Mahr MarSurf, Mitutoyo or OptoTech Interferometers
- Quick and precise tool change due to Hydro-Expansion Chuck Technology (Ø 25 x 42mm DIN)
- 1 vertical workpiece spindle, movable in X-Z-direction and 1 tool spindle mounted on B-Y-Axis
- Workpiece spindle combined with C-Axis
- AC servo motors for X- and Z-Axis
System advantage
- Universal machine for optical processing
- Maximum flexibility combined with the largest possible working chamber
- Different expansion options offer maximum variability
Process characteristics
Processing Technologies:
- Spherical Polishing in Synchrospeed mode
- Advanced Wheel Polishing A-WPT
- A-FJP Corrective Polishing
- Classic Pitch Polishing
- Partial Pitch Polishing
Options
- Exhaust filter system for mist collection
- Polishing Slurry Tank
