F-Cube

Software to create and manage files for the production of rotationally symmetric aspheres (2D mode), off-axis aspherical and toric surfaces, as well as freefrom surfaces (3D mode) - depending on the machine type.

General informationHighlightsTechnical Data
PDF Download
Contact request
Contact form


Contact request

Highlights

  • Designed for Optotech generators
  • Calculation mathematically or via point cloud interpolation
  • Many different tool types to choose

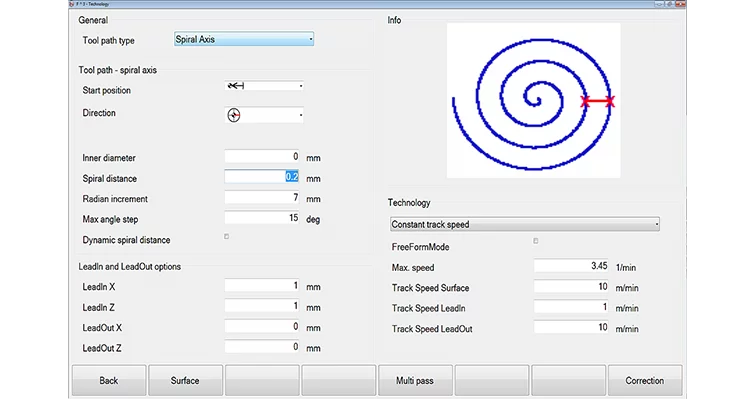

  • Various different toolpaths with 32 optional combinations: Spiral mode (spindle) Spiral mode (axis)
  • Raster mode with numerous raster options

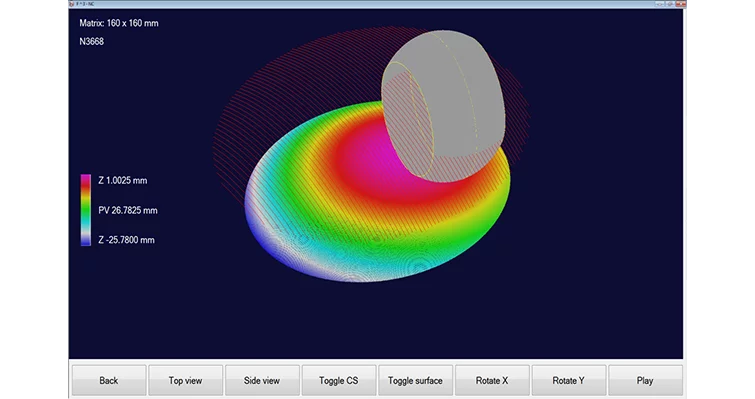

  • 3D-Simulation of the toolpath
  • Feed rate and spindle speed adjustable
  • Fragmentation of the cuts (Optional)
  • Correction data input: MOD-files, UMESS, Calypso and Nanoscan files. Others on request
  • Many options to influence the correction data (e.g. smoothing, extrapolation)
  • Combination of several measuring files possible
Technical Data
F-Cube
ApplicationPost-Processor for High Precision Processing of Aspheres, Freeform Surfaces and Cylinders
DisclaimerAll data are subject to change without notice. Please verify details with OptoTech.
